Mercury lamp series UV-CIPP repair unit

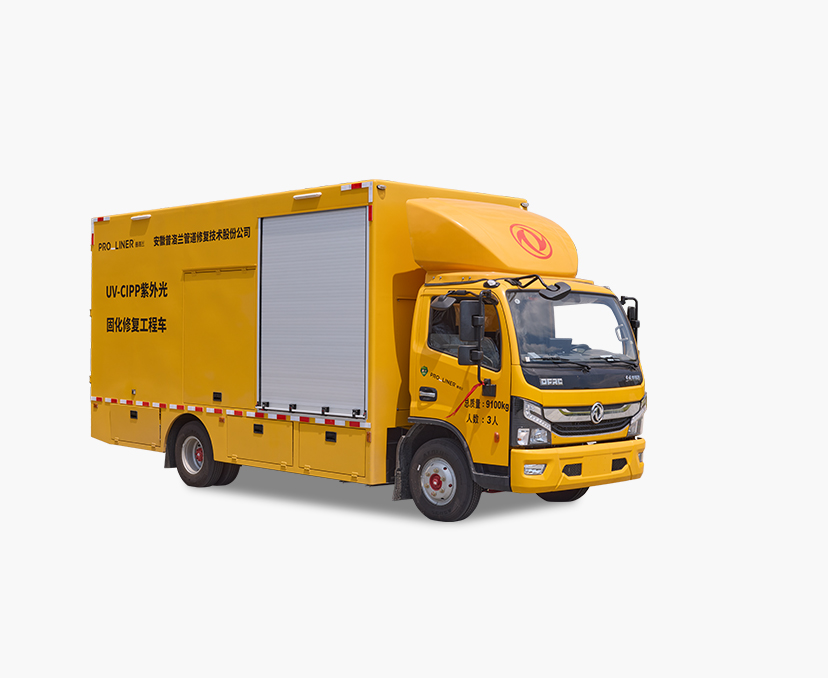

Equipped with advanced lightweight box trucks, equipped with generator sets, fans, UV repair machines, temperature control devices, lighting systems, etc
The curing machine is equipped with three sets of ultraviolet lamp groups that are suitable for pipes of different diameters
There are various forms of equipment for customers to choose from, including containerized, vehicle mounted, and bare metal
Product Features
Equipped with 3 types of lamp holders
The independently developed high-efficiency mercury lamp has an energy density 30% higher than LED light sources
Front 306 ° panoramic high-definition+rear high-definition camera, working temperature range -10 ℃ -100 ℃

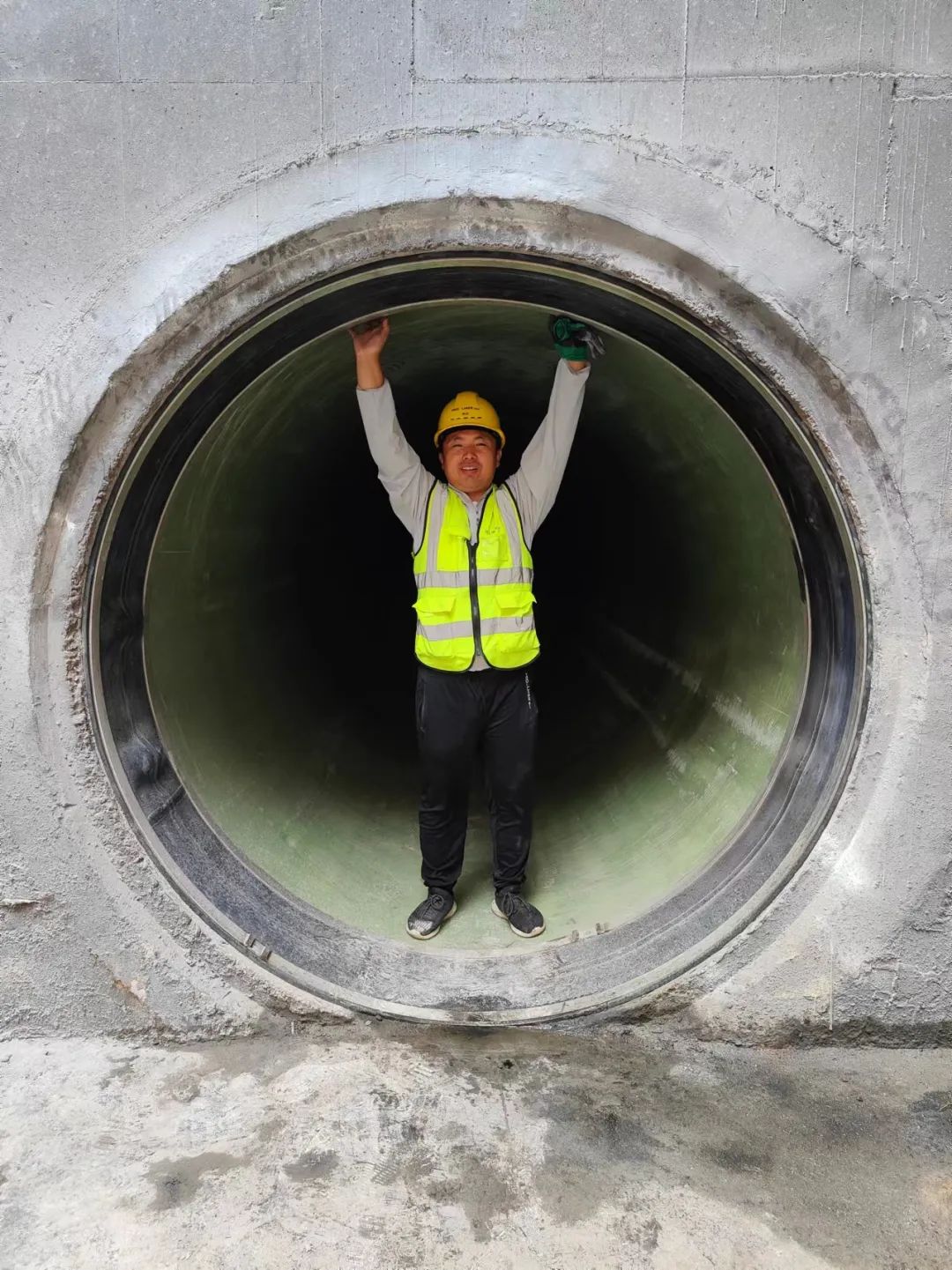

Repair DN200-2000mm pipeline
Standard configuration: DN200-DN1600 pipe diameter tie head, made of 304 material, equipped with high temperature resistant sealing gasket, spiral locking
Standard 160m cable, manual/automatic winding, adjustable winding speed (0.1-5) m/min

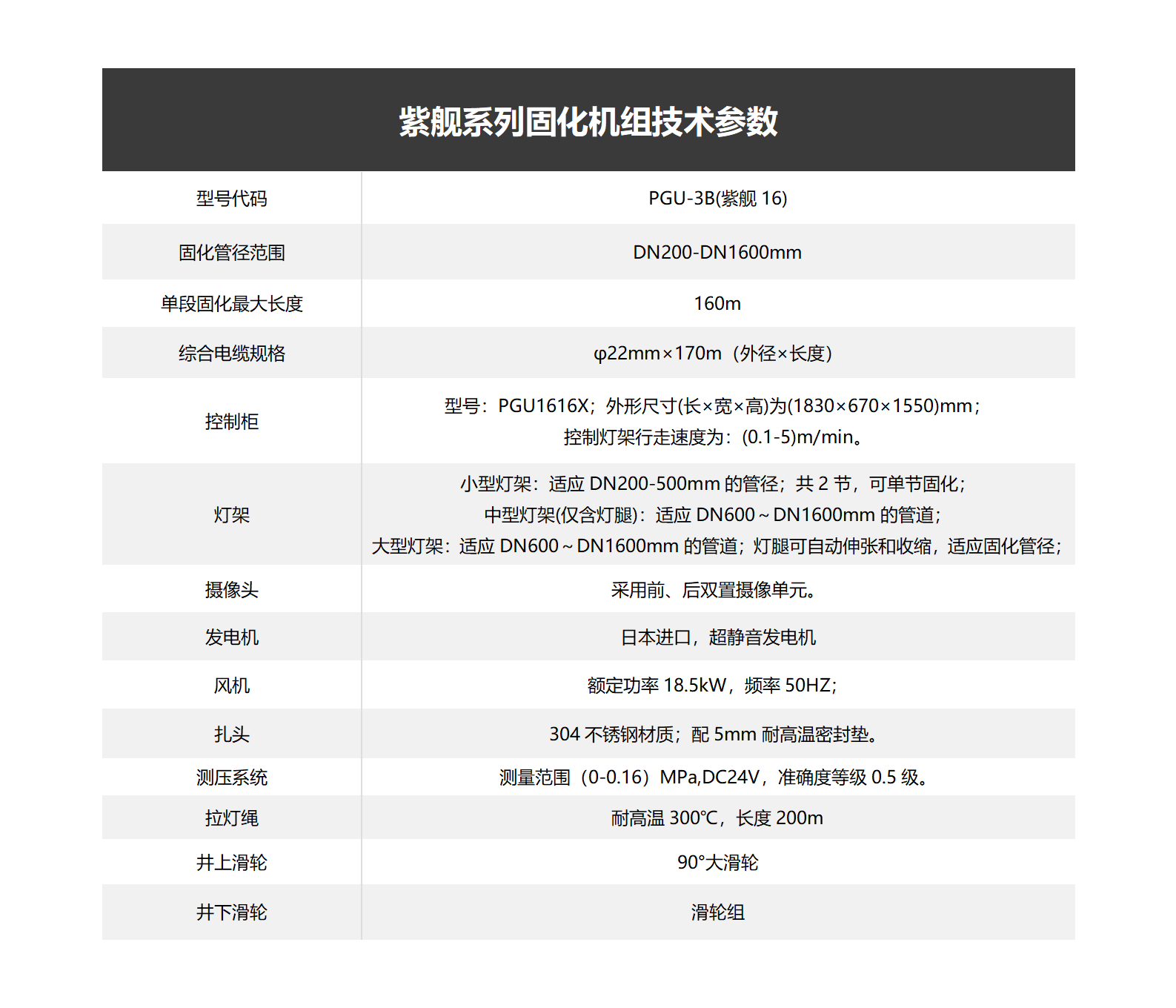

Related parameters
