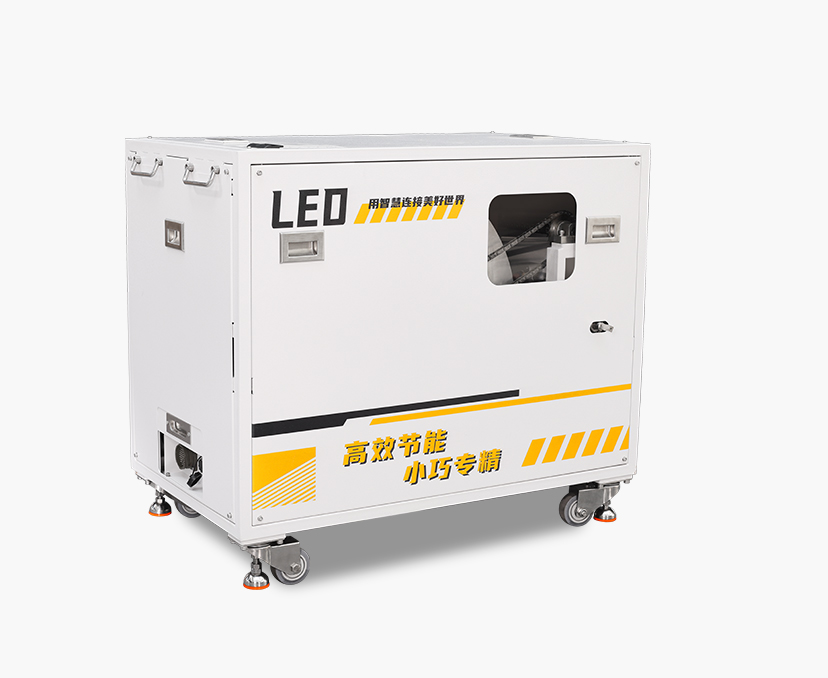

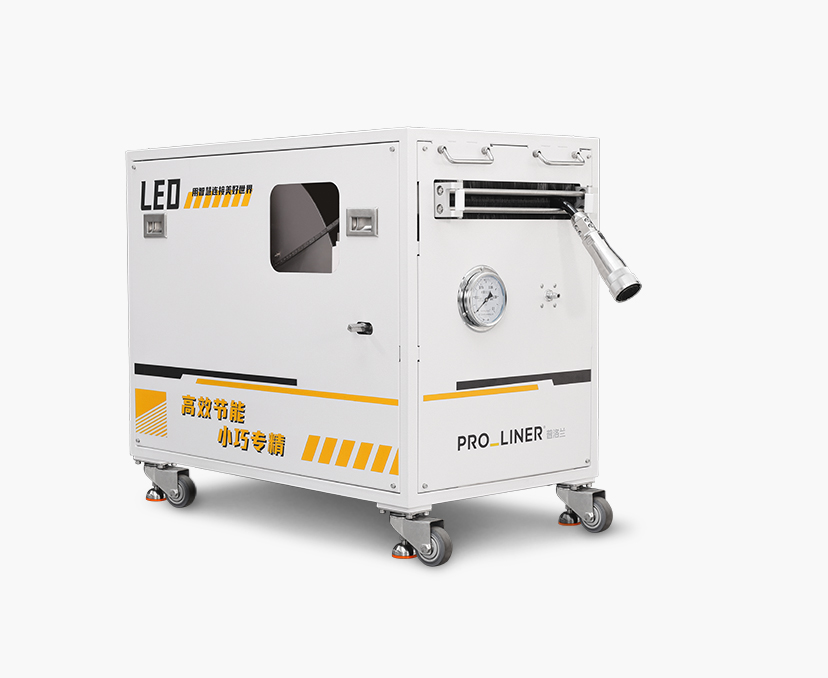

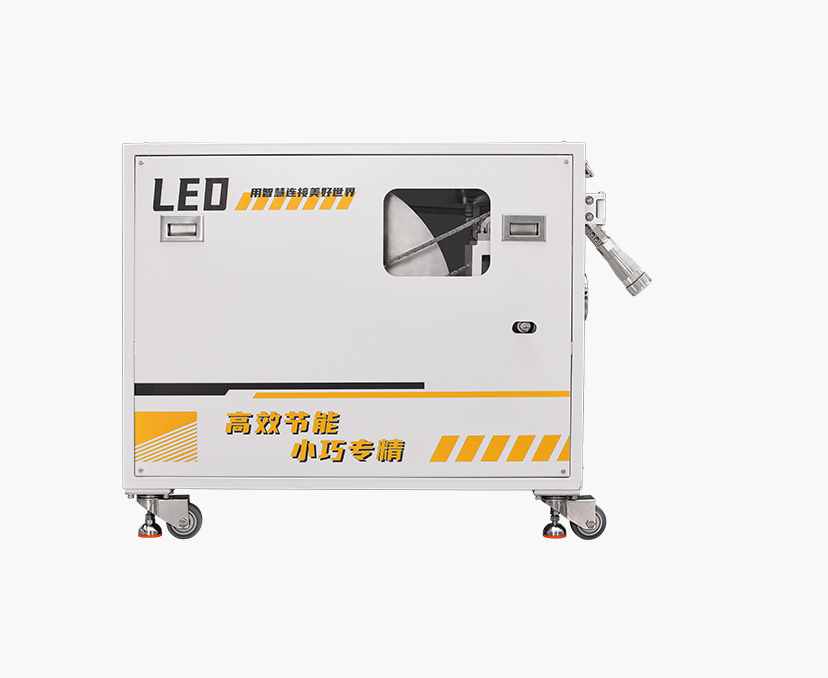

LED curing repair unit
Small size, easy to transport;
Modular design, plug-in connections between modules, easy operation; Curing pipe diameter DN150-DN500, breaking the current situation where DN150 cannot be cured;
The three sets of lamp frames are connected by aviation plugs and can be disassembled and used separately to meet the solidification requirements of pipes of different lengths
Product Features
Small size, easy to transport
Modular design, plug-in connections between modules, easy to operate
Curing pipe diameter DN150-DN500, breaking the current situation of DN150
Equipped with three sets of probes for detecting the air temperature inside the lining tube and the internal temperature of the lamp holder, the temperature display is more accurate
Three sets of LED ultraviolet lamps switch from 1200W-2400W-3600W to achieve optimal curing requirements for pipe diameter, with fast curing speed
The maximum curing speed is 5m/min, which can be adjusted in real-time according to the size of the pipe diameter

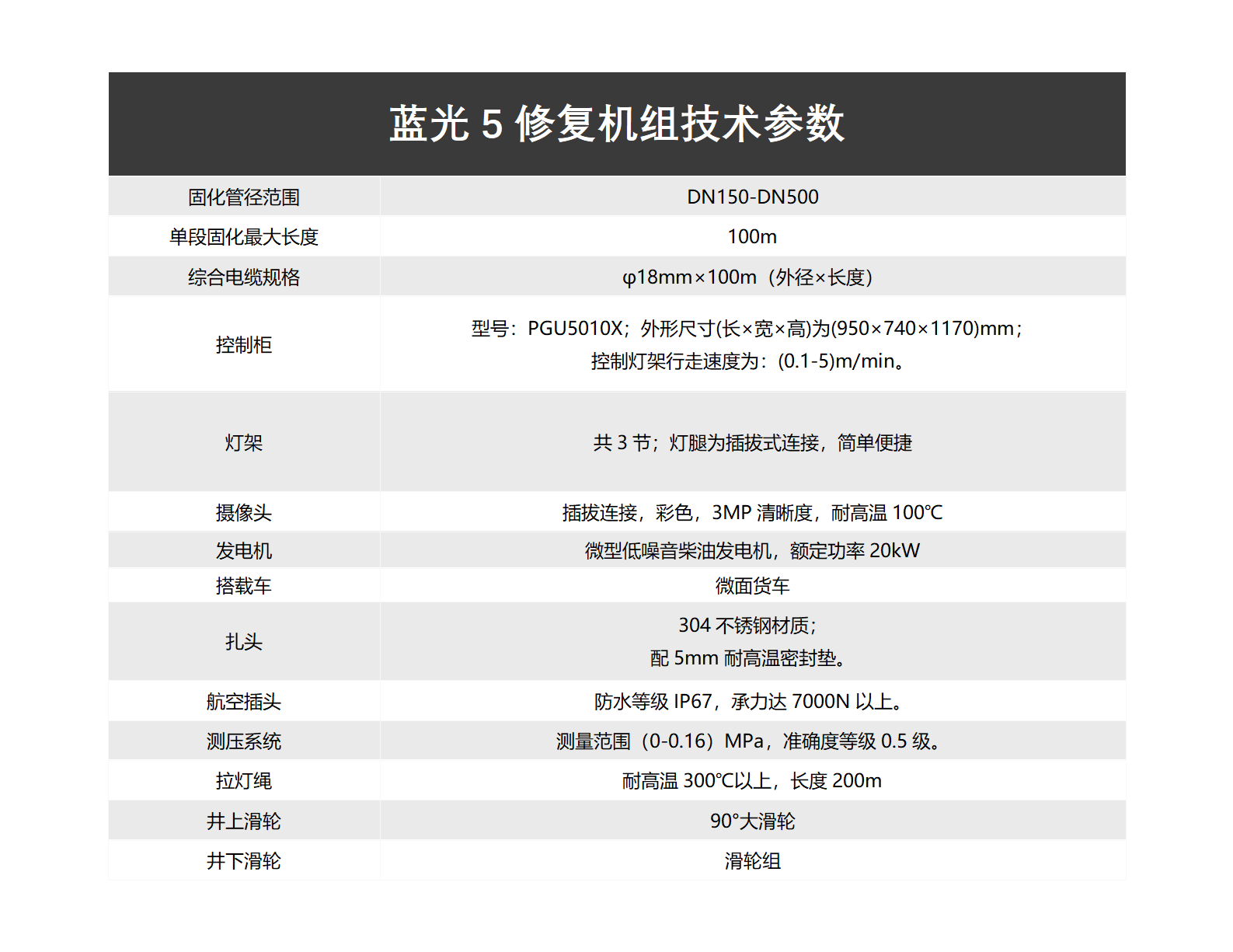

Related parameters
