The hose can be customized, with a maximum diameter of DN2400 to meet different parameters

The main material is unsaturated polyester resin with reinforced fiberglass

Compaction testing, tensile strength, bending strength, and bending modulus shall be carried out in accordance with CJJ-210-2014

Less excavation, environmentally friendly; The pre-treatment requirements for the pipe wall are not high; Short construction period;

Compared with the layer by layer method, only one curing is required; compared with thermal curing, the mechanical properties of the lining tube are higher;

The rated pressure of the lining pipe is 1.6MPa; Good anti negative pressure performance

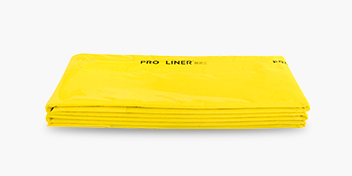

The locally repaired UV-CIPP lined hose consists of an inner membrane, a light cured glass fiber hose impregnation layer, a light cured adhesive, and an outer membrane from the inside out. UV cured adhesive can be applied in damp or slightly moist pipeline environments without affecting the curing effect of UV-CIPP. After the UV-CIPP lining hose is partially repaired, the original pipeline is tightly bonded to the lining tube through a one-time curing of the airbag. This not only achieves pressurized waterproofing, but also the repaired lining tube has the structural performance of UV-CIPP hose, which locally enhances the structural performance of the original pipeline.

Small size, easy to transport;

Modular design, plug-in connections between modules, easy operation; Curing pipe diameter DN150-DN500, breaking the current situation where DN150 cannot be cured;

The three sets of lamp frames are connected by aviation plugs and can be disassembled and used separately to meet the solidification requirements of pipes of different lengths

The Prolan photopolymerization point repair system mainly consists of a UV photopolymerization point repair unit and photopolymerization point repair materials, which are mainly used for repairing local defects in drainage pipelines. Choosing different sizes of airbags based on different pipe diameters can accurately repair defect points.
