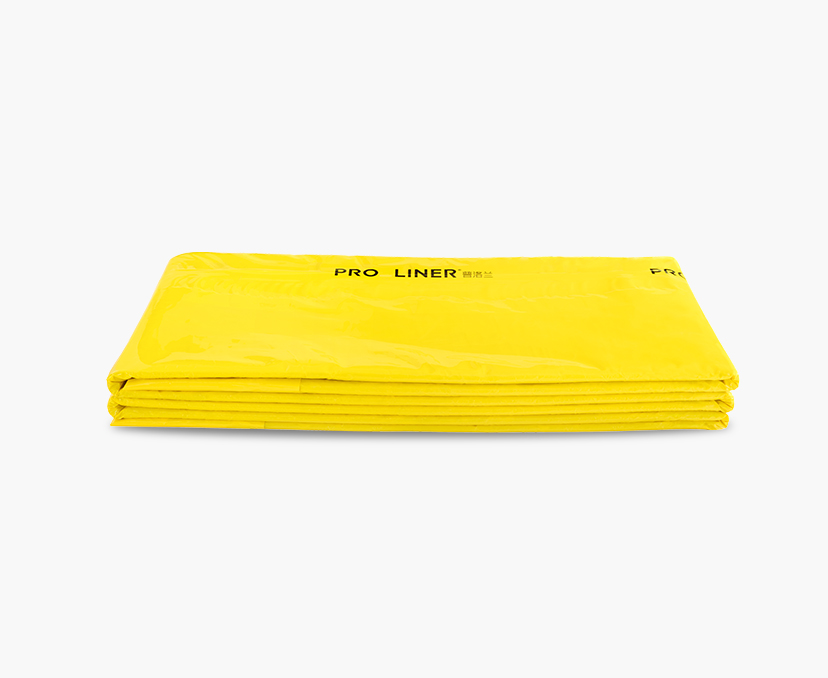

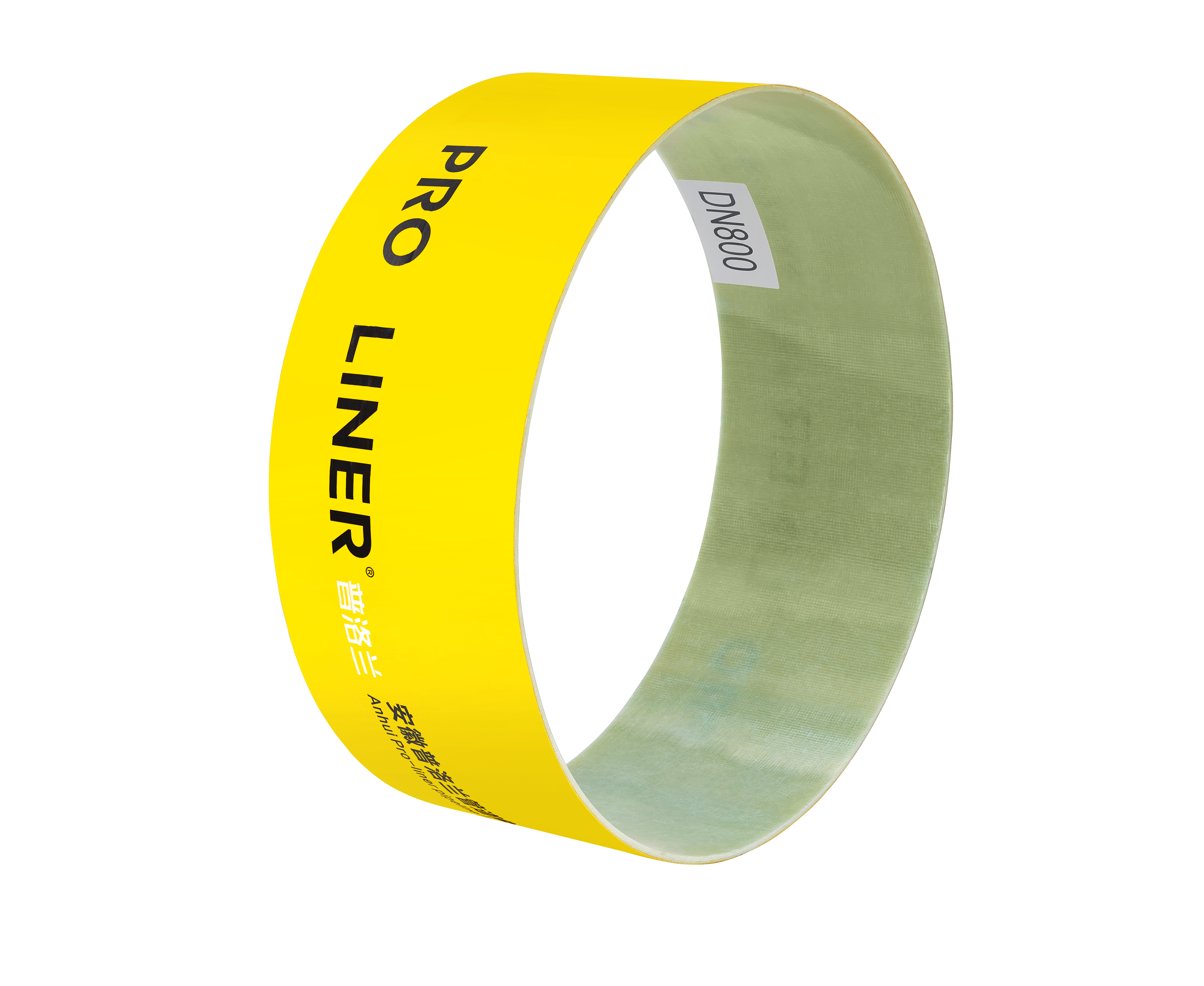

UV flexible hose for in-situ solidification and repair of drainage pipelines
The hose can be customized, with a maximum diameter of DN2400 to meet different parameters
The main material is unsaturated polyester resin with reinforced fiberglass
Compaction testing, tensile strength, bending strength, and bending modulus shall be carried out in accordance with CJJ-210-2014
Product Features
Short term modulus not less than 10000MPa, customizable mechanical properties, able to cope with various complex underground pipeline environments
The product has passed the authoritative certification of 10000 hours in Germany
Bending strength exceeding 200Mpa
Repackable DN150-DN2400 pipe diameter
The attenuation factor meets the requirements of German material standards and Chinese design standards for 50 years
By utilizing high-intensity ultraviolet radiation, the resin material can quickly solidify inside the pipeline, greatly reducing repair time and improving construction efficiency.

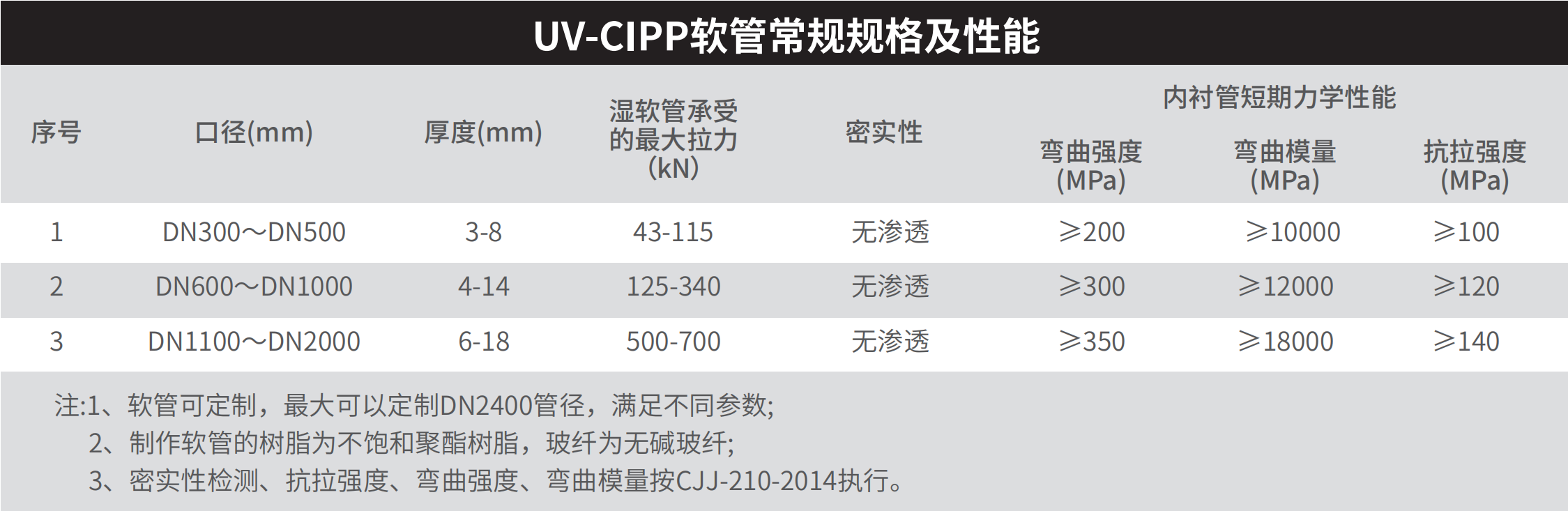

Related parameters

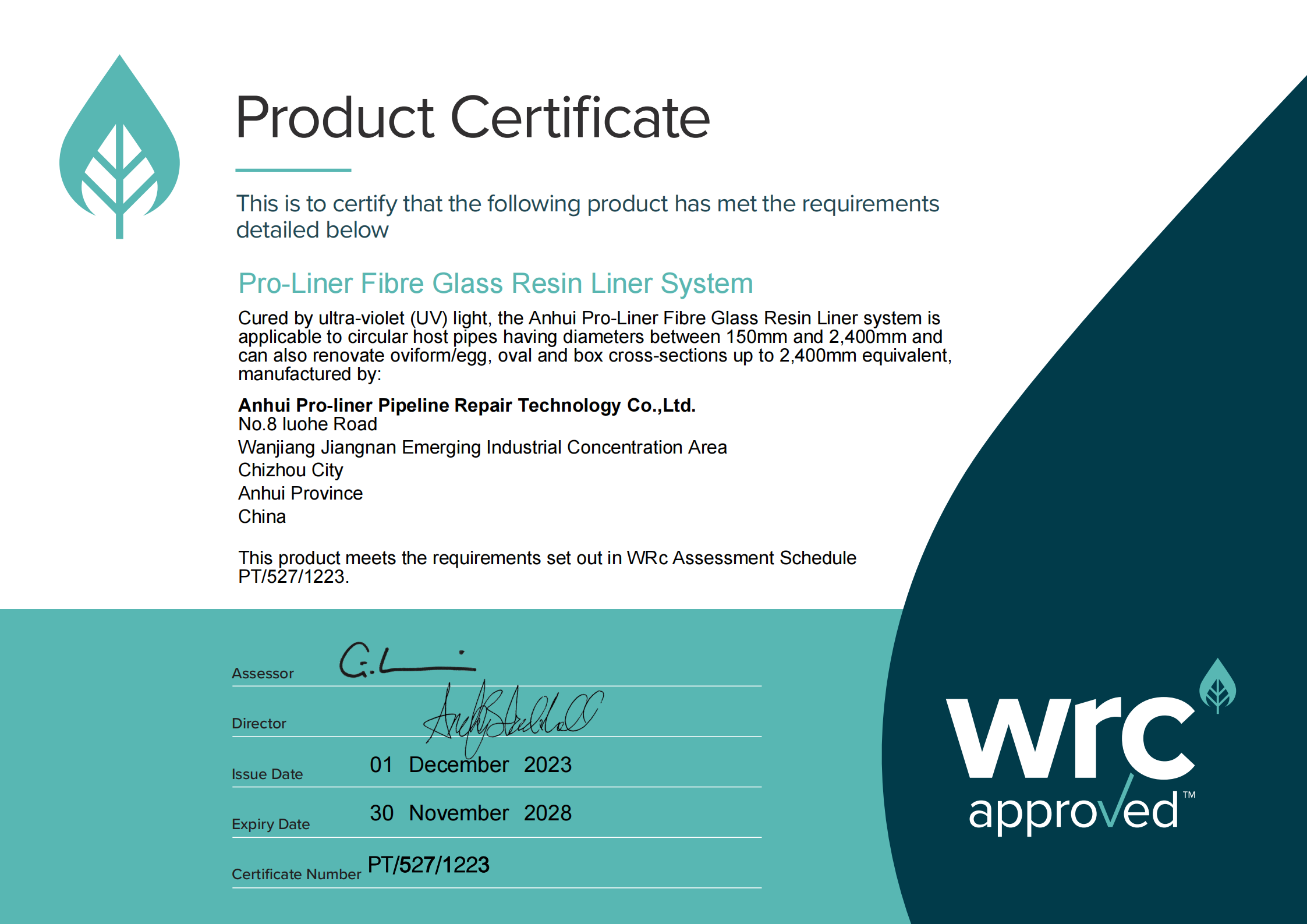

Related certifications
